類型：傳動系列，端面浮動式
Type: Face driving center,Compensating pins type

適 用：CNC車床、高速車床、自動送料專用機及其他機床。

Application: CNC lathe and high speed lathe and auto feeder or other machine tool

用 途：車削軸心時，免車削工件端面，每支傳動齒自動調整平均傳動力，精度穩定性佳，可正、反轉車削。

Working Usage: Without turning the workpiece face and each drive pin can adjust the transmission force,better precision and stability for turning and reversing  lathing process

結 構：採用機械式平衡結構特殊設計製成。

Structure: Adopted the design of mechanical balance structure

精準度：0.005以內

TIR: Less than 0.005mm

檢測頂尖的尖部跳動精度時，必須在頂尖頂緊工件的狀態下進行打表。

Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.

配 件：SC-66-A組:中心針09-09;傳動齒10-10

SC-66-B組:中心針09-09;傳動齒10-13

SC-66-C組:中心針09-06;傳動齒10-17

Accessories: For SC-66-A group, center pins 09-09 and drive pins 10-10

For SC-66-B group, center pins 09-09 and drive pins 10-13

For SC-66-C group, center pins 09-06 and drive pins 10-17

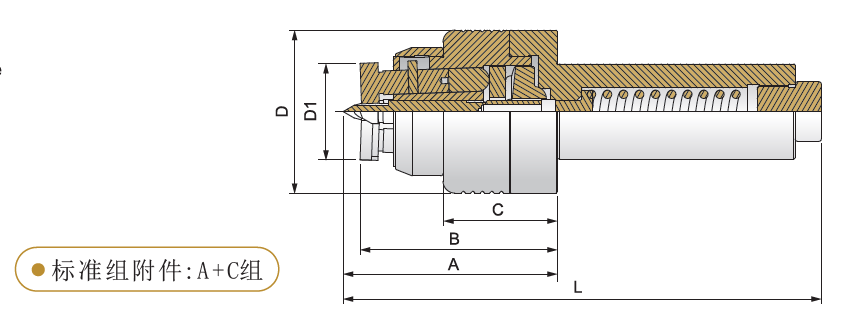

規格 / Specification      單位/ UNIT：mm

型式/外表尺寸 Model/Spec	A	B	C	D	D1	L	直徑加工范圍小徑--大徑 Working range (mini pin--big pin)
SC-66-B-40A	92	82.7	48	68.5	33.5	203	17--40mm
SC-66-B-40B	92	82.7	48	68.5	36.8	203	15--45mm
SC-66-B-40C	92	82.7	48	68.5	40.5	203	10--50mm

非標需求可定制  Customized order can be accepted.
保留技術更改的權利  Subject to technical changes.

配件詳情頁/Accessories Page
頂尖技術要點與使用說明/Center technical user manual
